Hot Water Duct Booster Coils

Stock Hot Water Booster Coils

F.H. x F.L. Rows Fins/Inch
30 X 48 1 10

CFM @
750 FPM
G.P.M. @
180° ENT H2O
60°F EAT
MBH
Water
FT. Pressure Drop
CFM @ 750 FPM
Steam MBH
@ 2 psig
7500 12.0000 209.6000 2.7200
7500 18.0000 231.4000 4.6300 256.3000
7500 24.0000 244.0000 7.3100



3 to 5 Day Shipment

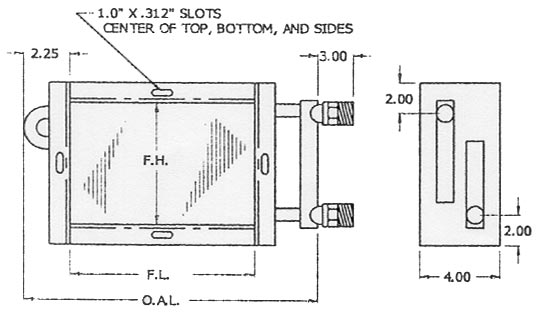

STOCK HEATING COIL DIMENSIONS

Stock Heating Coil Dimensions

Some coils feed more than (1) tube and are header type coils.
THESE DIMENSIONS DO NOT SHOW HEADERS.
